Laser Capabilities

Our fiber laser can cut carbon steel plate, stainless steel plate, copper plate, brass, and Aluminum. The maximum thickness for carbon steel is 16mm for Stainless steel, 12mm, for aluminum 10mm, 6mm for brass, and 1mm for copper. For more information on available thicknesses of material refer to our material selection page.

± 0.2 mm

Cutting Tolerance

1 mm » 16mm

Cutting Thickness

3000 x1500 mm

Sheet Sizes

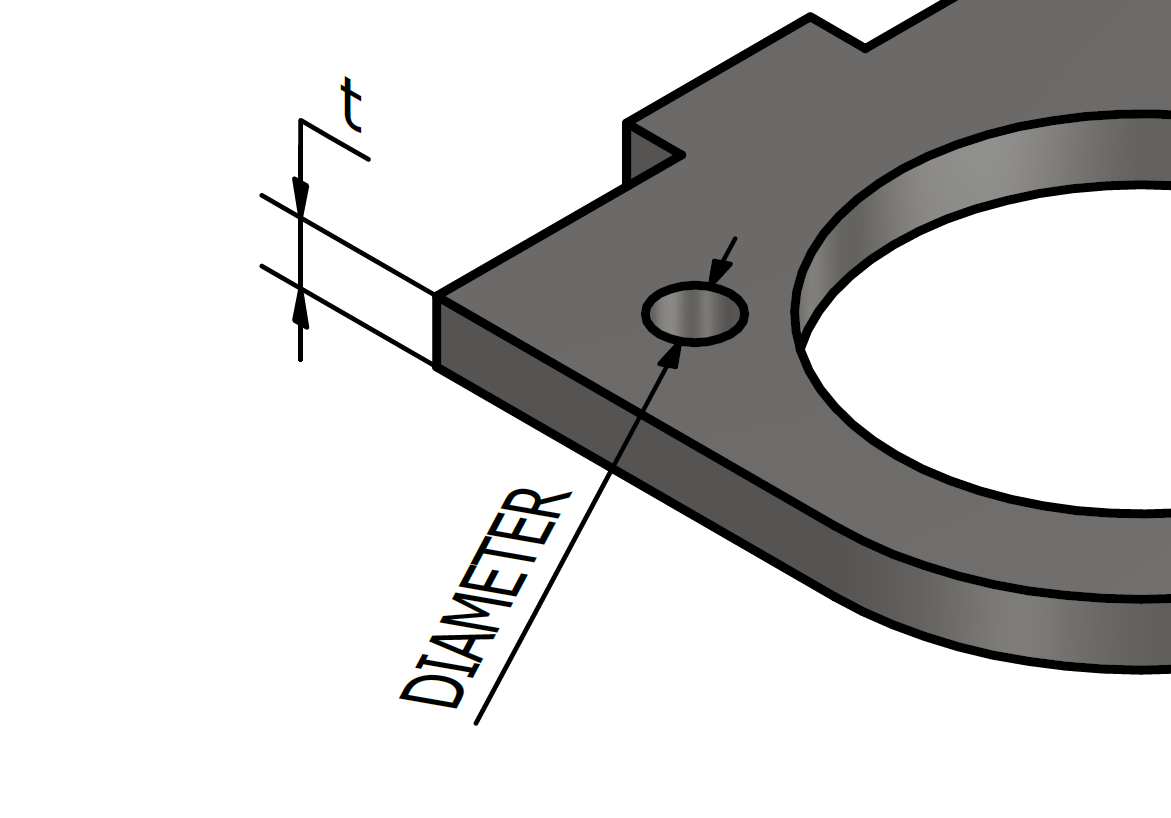

Minimum hole & interior cut sizes

The following table gives the recommended minimum hole size for our laser cutter. The sizes given are those for a round hole using the thickness of the material. You can also convert these sizes from a round hole into another shape, such as a triangle or square, by comparing the area. The general rule of thumb is that the hole diameter should not me less than ½ the material thickness. This does not apply to all materials, and we recommend that you refer to the table below.

Material Thickness	Mild Steel	Stainless	Aluminium	Galvanised	Zinc Plated	Copper	Brass
	Min	Min	Min	Min	Min	Min	Min
1.0mm	0.50	0.50	1.00	0.50	0.50	0.49	0.80
1.2mm	0.75	0.75	1.25	0.75	0.75	—	0.80
1.5mm	0.75	0.75	1.25	0.75	0.75	—	0.80
2.0mm	1.00	1.00	1.50	1.00	—	—	1.00
2.5mm	1.00	1.00	1.75	1.25	—	—	1.25
3.0mm	1.00	1.00	2.00	1.50	—	—	1.50
4.0mm	1.00	1.00	2.50	—	—	—	2.00
5.0mm	1.00	1.00	3.50	—	—	—	2.50
6.0mm	3.00	1.00	4.00	—	—	—	3.00
8.0mm	4.00	1.00	5.00	—	—	—	—
10.0mm	5.00	1.00	7.00	—	—	—	—
12.0mm	5.00	1.00	—	—	—	—	—
16.0mm	5.00	—	—	—	—	—	—

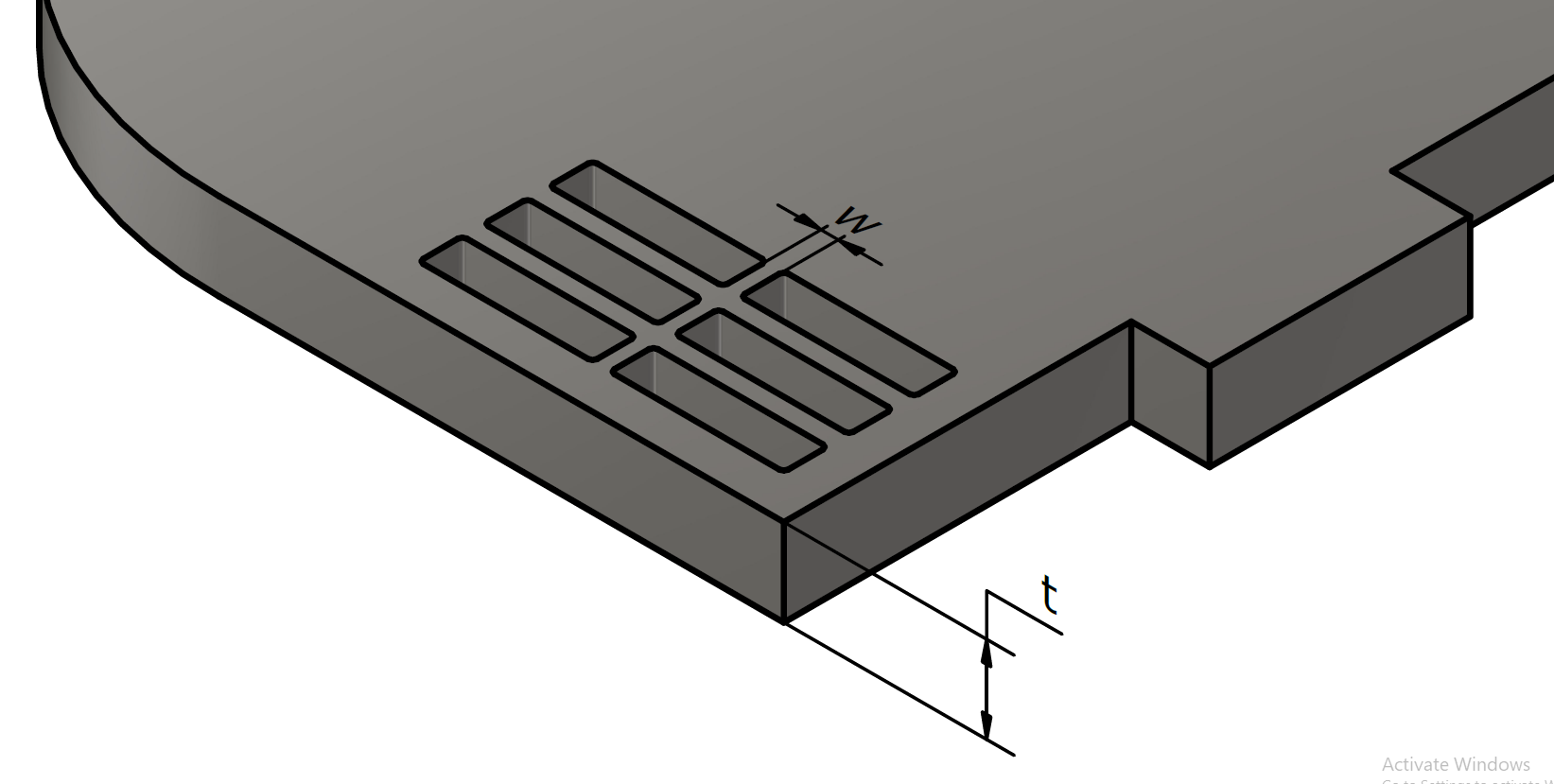

Minimum dimension between shapes

The following table gives the recommended minimum hole size for our laser cutter. The sizes given are those for a round hole using the thickness of the material. You can also convert these sizes from a round hole into another shape, such as a triangle or square, by comparing the area. The general rule of thumb is that the hole diameter should not me less than ½ the material thickness. This does not apply to all materials, and we recommend that you refer to the table below.

Material Thickness	Mild Steel	Stainless	Aluminium	Galvanised	Zinc Plated	Copper	Brass
	Min (w)	Min      (w)	Min	Min	Min	Min	Min
1.0mm	1.00	1.00	1.00	1.00	1.00	1.00	1.00
1.2mm	1.00	1.00	1.00	1.00	1.00	—	1.00
1.5mm	1.00	1.00	1.00	1.00	1.00	—	1.00
2.0mm	1.00	1.00	1.00	1.00	—	—	1.00
2.5mm	1.00	1.00	1.00	1.00	—	—	1.00
3.0mm	1.00	1.00	1.50	1.00	—	—	1.00
4.0mm	2.00	2.00	2.00	—	—	—	2.00
5.0mm	2.00	2.00	2.50	—	—	—	2.00
6.0mm	2.00	2.00	3.00	—	—	—	2.00
8.0mm	2.00	2.00	4.00	—	—	—	—
10.0mm	3.00	3.00	5.00	—	—	—	—
12.0mm	3.00	3.00	—	—	—	—	—
16.0mm	5.00	—	—	—	—	—	—
